Printing PDF out of Revit with Bluebeam Revu pdf printer and product is upside down (inversed)

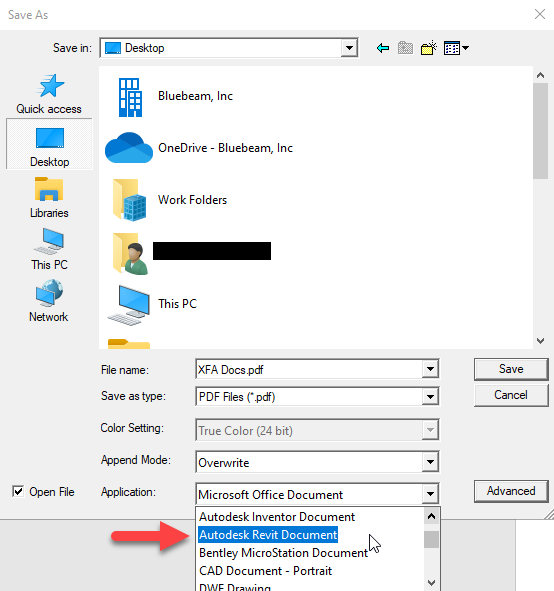

First, check the Application drop-down menu in the Save As dialog. Ensure that it's set to Autodesk Revit Document as shown here:




If this doesn't resolve the issue, it's possible to specify a custom rotation value in the Save As dialog's advanced section. If this is not set to 0, then you may experience unexpected rotation. To correct this, follow the steps below:

  1. Complete your print to the Bluebeam PDF printer as you normally would.
  2. When the Save As dialog appears, locate the advanced options (Image Compression, Resolution, Line Merge, etc.).  If you do not see these, click Advanced to make them appear.
  3. In the Page Rotation section, set your Rotate value to 0.
  4. Finish saving the PDF as you normally would.

If you cannot see the Save As dialog when printing, check out Save As dialog never appears when printing to Bluebeam PDF printer.
